Description
Usage
this 8-channel capsule counting machine can accurately count fill products of different shapes and sizes (such as soft capsules, hard capsules, tablets, sugar-coated and film-coated tablets, pills, herbal medicines or candies) into containers widely used in the pharmaceutical, food, chemical industry
Description

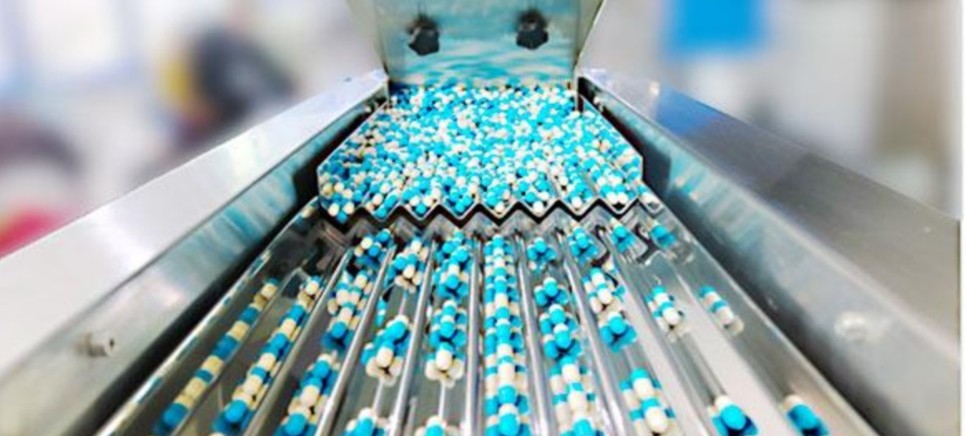

The tablets, candies, beans etc is placed in the hopper. The feeding hopper facilitates the controlled release of tablets onto multiple-channel vibratory plates. These plates engage in rhythmic vibrations that serve a dual purpose: separating tablets that might adhere to each other and aligning them through an infra-red beam which accurately counts them into a container on a conveyor. You can set the amount to be counted and the number of batches to be run on a touch screen display
Technical Parameters
| Model | YLS-8S |
| Capacity | 1-30 bottles per minute |
| Filling material range | 5#~00#capsules, soft capsules,7~22mm round tablets, shaped tablets, sugar coated tablets,8~16mm |
| Loading range | 2~9999 tablets |
| Applicable bottle mouth | 10-5000ml round bottle, square bottle standard feeding point 22,28mm |
| Accuracy | More than 99.7% |
| Hopper capacity | 25 L can hold 10600pcs |
| Bottle height adjustment range | 240mm |
| Air supply | 0.6MPA |
| Power | 110-220V 50HZ-60HZ/0.5KW |
| Net weight | 80/110KG |
| Equipment dimensions | 65X109X90CM |
